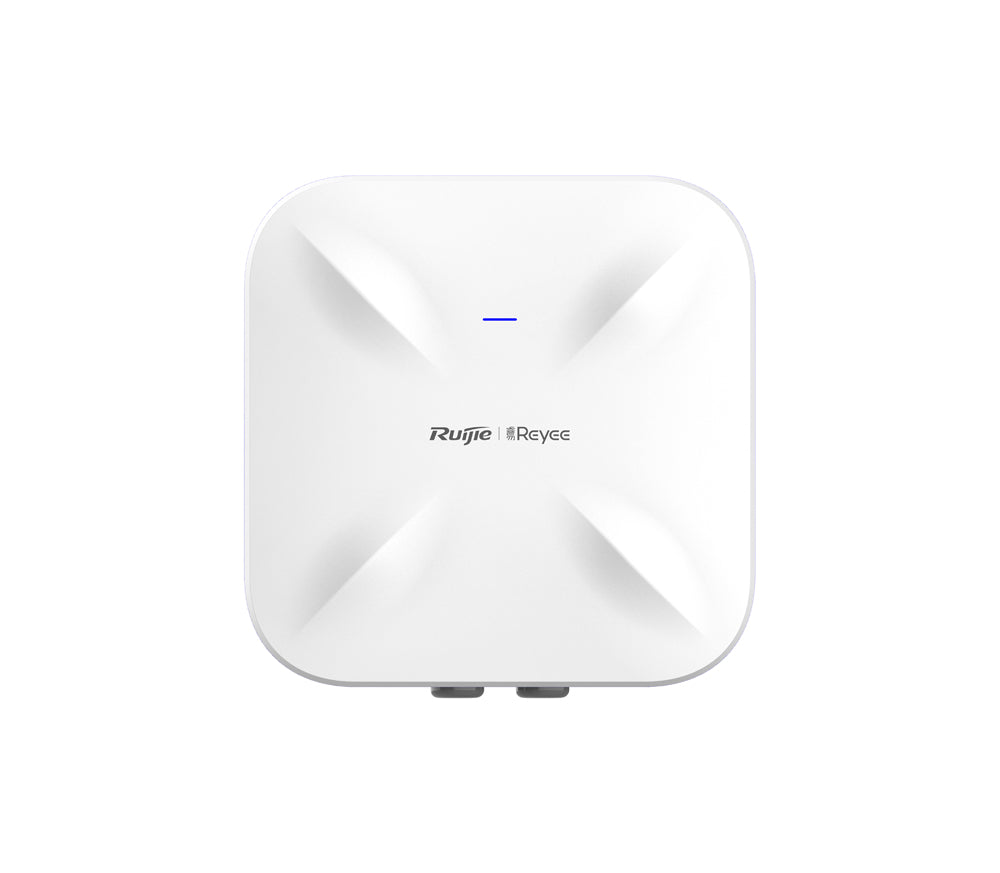

RG-RAP6260(G) AX1800 Wi-Fi 6 Dual Band Gigabit Outdoor Access Point

General

• Model: RG-RAP6260(G)
• Radio: Dual-stream dual-band
• Protocol: Concurrent 802.11a/b/g/n/ac/ax
• Operating Bands:
  • 2.4 GHz: 2.4 ~ 2.4835 GHz (802.11b/g/n/ac/ax)
  • 5 GHz: 5.150 ~ 5.350 GHz, 5.725 ~ 5.850 GHz (802.11a/n/ac/ax, country-specific)
• Antenna: Internal antennas (2.4 GHz: 4 dBi, 5 GHz: 6 dBi)
• Spatial Streams:
  • 2.4 GHz: 2x2 MU-MIMO
  • 5 GHz: 2x2 MU-MIMO
• Max Throughput:
  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 1201 Mbps
  • Total: 1775 Mbps per AP
• Modulation: DBPSK, DQPSK, CCK (DSSS), BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Performance

• Receive Sensitivity:
  • 11b: -91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps)
  • 11a/g: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps)
  • 11n: -83 dBm (MCS0), -65 dBm (MCS7), -83 dBm (MCS8), -65 dBm (MCS15)
  • 11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9)
  • 11ac HT40: -79 dBm (MCS0), -57 dBm (MCS9)
  • 11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9)
  • 11ax HE80: -82 dBm (MCS0), -57 dBm (MCS9), -52 dBm (MCS11)
• Maximum Output Power (Single Stream):
  • 2.4 GHz (2.4 ~ 2.4835 GHz): 26 dBm
  • 5 GHz (5.150 ~ 5.250 GHz, 5.725 ~ 5.850 GHz): 25 dBm
  • (Country-specific, complies with local laws)
• Adjustable Power: 1 dBm increments

Physical Specifications

• Dimensions: 298 mm × 298 mm × 65 mm (excluding mounting kits)
• Weight: ≤ 1.35 kg (excluding mounting kits)
• Service Ports:
  • 1 × 10/100/1000 Base-T Ethernet port (supports PoE IN)
  • 1 × 100/1000 Base-X SFP port
• Management Port: N/A
• LED Indicator: Single indicator (blue light)
• Power Supply: 802.3at PoE
  (Warning: 802.3af or non-standard PoE adapters may cause issues. Use Ruijie PoE+ switch or 802.3at PoE adapter.)
• Power Consumption: ≤ 17W
• Bluetooth: Supported

Environmental Specifications

• Operating Temperature: -40°C to 65°C
• Storage Temperature: -40°C to 85°C
• Operating Humidity: 0% to 100% (non-condensing)
• Storage Humidity: 0% to 100% (condensing/non-condensing)

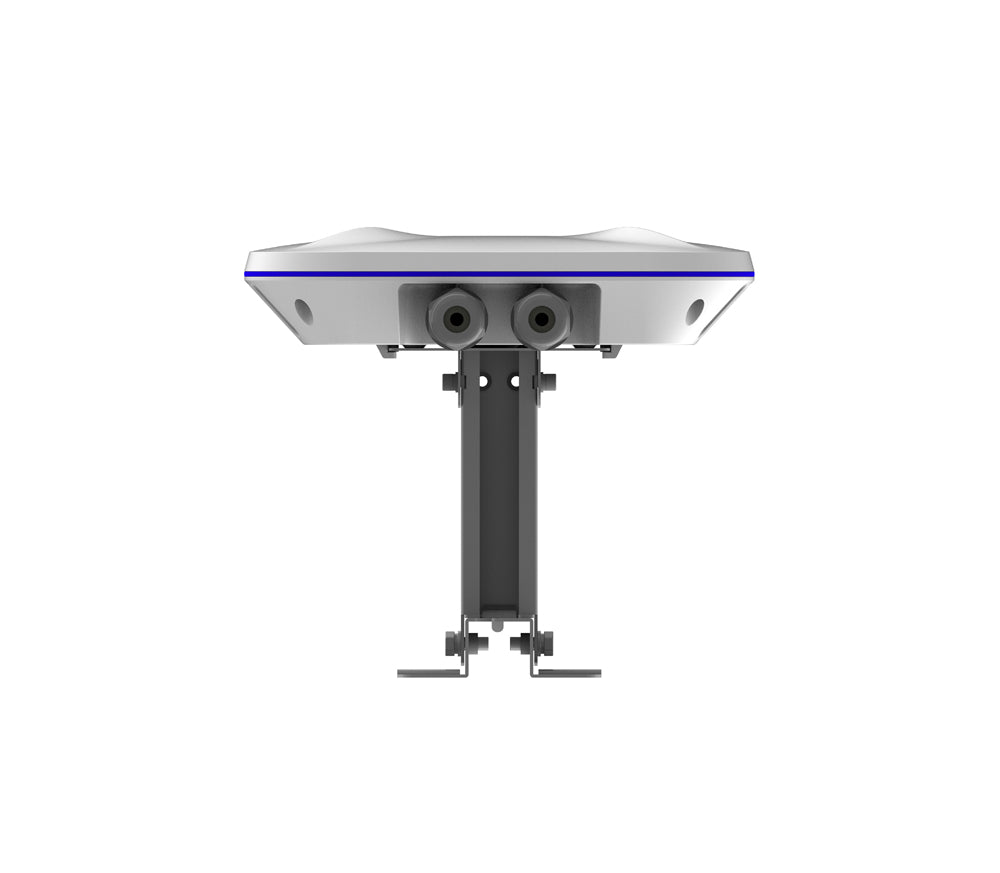

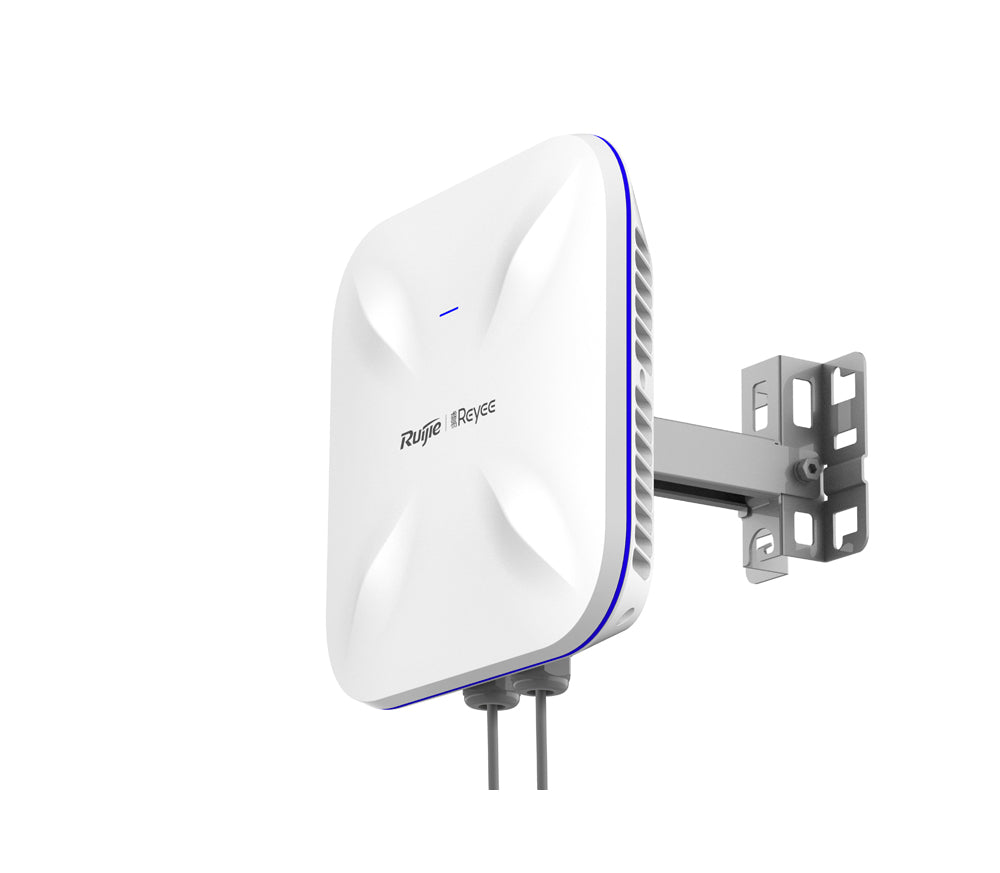

• Installation: Pole or wall-mountable

Standards and Reliability

• Safety Standard: GB4943, IEC 60950-1
• EMC Standard: GB9254, EN301 489, EN50155: EN50121
• Vibration Standard: IEC61373
• Radio Standard: EN300 328, EN301 893
• MTBF: > 400,000 hours

WLAN Features

• Maximum Clients: 512
• Recommended Clients: 100
• SSIDs: Up to 8
• SSID Features:
  • SSID hiding
  • Authentication mode, encryption mechanism, and VLAN attributes per SSID
• STA Limit: SSID-based and radio-based
• User Isolation: Layer 2 support
• Mesh: Reyee Mesh supported
• Roaming: Layer 2 and Layer 3 supported

Security

• Authentication: PSK supported
• Blacklist/Whitelist: Static blacklist and whitelist supported
• Encryption: WPA (TKIP), WPA2 (AES), WPA-PSK

Routing

• IP Addressing: Static IP, DHCP, PPPoE dial supported

Management and Maintenance

• Networking: Unified networking of all network equipment
• Management Options:
  • Local or remote management with Ruijie Cloud app
  • Local management via web
  • Remote management with Ruijie Noc Cloud platform

Platform Management Features

• Automatic RF adjustment via platform
• Unified configuration via platform
• Unified monitoring via platform
